No chance for corrosion & chemicals

25% less wear

Stainless steel lead screws are the standard material for our lead screws. In combination with our drylin lead screw nuts, there is 100% freedom from corrosion. Tests show that wear is reduced by up to 25%. And we can also find a suitable material for your application in extreme environmental conditions. Our experts offer the solution for your specific application.

With specifications and shapes matching the polymer nut and lead screw, dryspin provides up to 30% longer service life and efficiency for high helix threads. Due to the rounded tooth geometry, the contact area between lead screw and nut is reduced, and the lead systems operate quietly and without vibration under load.

Would you like more information about stainless steel lead screws or do you need an individual consultation? Our experts will be happy to get in touch with you.

Contact an expert

30% longer service life

But not only wear and tear can be reduced. With specifications and shapes matching the polymer nut and lead screw, dryspin provides up to 30% longer service life and efficiency for high helix threads. The rounded tooth geometry reduces the contact area between lead screw and nut, allowing the lead screw drives to operate quietly and without vibration under load.
Learn more about the advantages of dryspin technology, the different manufacturing processes and the stainless steel products we recommend for drylin lead screw technology. If you have any questions, our experts will be happy to advise you.

dryspin high helix thread

Stainless steel AISI 304
30% longer service life
Higher efficiency and low wear
Thread direction: right, left and reverse

Buy now!

drylin trapezoidal thread

Stainless steel AISI 304
C15 steel 1.0401
Absorption of high axial forces
Thread direction: right, left and reverse

Buy now!

drylin metric lead screws

Stainless steel AISI 304
Standard for maximum compatibility
Thread direction: right
Higher efficiency and low wear

Buy now!

Configure customer-specific designs in lead screw technology online

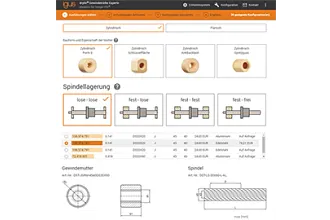

Lead screw drive expert

► Assistance in selecting the optimum lead screw drive
► Service life calculation for the desired configuration
► PDF download with all details for the desired application
► Display of price and delivery time for your individual configuration

Go to the expert system

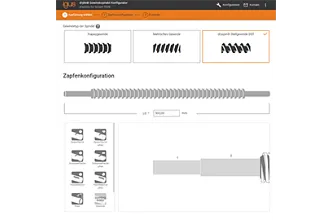

Lead screw configurator

► Individual pin machining without CAD software
► 2D dimensioned drawing and 3D step file, generated directly online
► Immediate price calculation
► Order online or request quotation
► Individually configurable reverse lead screw

Go to the configurator

Stainless steel lead screws customer application examples

Filling system for reaction vessels

Technical data:

What was needed: a clean filling, which does not have to be sterile, but has to be very clean, and a low overall weight of the system
Requirements: cleanroom suitability, lubrication-free, maintenance-free, lightweight, precision, fast availability
Material: trapezoidal lead screw nut made of iglidur® W300, trapezoidal lead screw made of AISI 304 material, drylin® miniature guides
Industry: medical equipment

Go to application

Beer lift for DIY application

Technical data:

What was needed: smooth motion up/down with the appropriate load, low cost
Requirements: maintenance-free, lubrication-free, withstand high torques, weather-resistant, simple assembly, cost-effective, fast procurement
Products used: dryspin lead screw nut DST-JSRM-2220DS10X25 and lead screw DST-LS-10X25-R-ES

Go to application

Solar panel

Technical data:

What was needed: smooth operation under extreme ambient conditions
Requirements: insensitive to dirt, maintenance-free, smooth movement
Industry: solar technology
Success for the customer: drylin® lead screw technology and igubal® spherical bearings ensure perfect operation at extreme temperatures and with weathering effects due to wind, water, dirt and dust.

Go to application

Shut-off valve

Technical data:

What was needed: error-free workflow in process technology
Requirements: maintenance-free & lubrication-free, chemical resistance
Material: maintenance-free iglidur® materials
Industry: process engineering

Success for the customer: lead screw technology and plain bearings from igus ensure faultless bearing point function

Go to application

Adjustment of beamer angle

Technical data:

What was needed: a cost-effective solution that allows for infinitely variable tilt angle adjustment
Requirements: lubrication-free, maintenance-free dry operation, quiet, infinitely variable
Products used: spherical trapezoidal lead screw nuts
Industry: camera technology

Advantages: the spherical trapezoidal lead screw nuts of drylin lead screw technology ensure a smooth beamer adjustment, for which a cost-effective and fast delivery is also guaranteed

Go to application

Further application examples of drylin lead screw technology:

Our manufacturing methods for drylin® stainless steel lead screws

Thread rolling - our standard

A workpiece is placed centrally between two tools with profile. They rotate simultaneously, the thread is rolled into the surface of the raw material by cold forming. The thread profile is transferred to the workpiece by stress and rotation. The thread is ready.

More about thread rolling

Thread whirling - for special sizes

Thread whirling for special sizes requires only one tool. It is ring-shaped and is clamped around the appropriate workpiece. This rotates very slowly, while the whirling tool rotates outside at very high speed. The thread is produced by inward facing cutting bits.

More about thread whirling

To the dryspin lead screw technology overview page

Find everything you need here

Discover our dryspin lead screw technology, reduce time spent on design, and optimise your procurement process.

► Online shop
► Configurators
► Information
► Application examples

To the overview page
