Low profile linear carriages drylin® N


The focus in the construction of low profile linear carriages of the drylin N series is on the energy-efficient operation of small linear carriages for loads up to 1 kN. The maintenance-free dry running based on the iglidur high-performance plastics and the quiet, gentle movement as well as the low installation effort that characterize all linear slide guides from igus can of course also be found with drylin N guide carriages.
  • Low profile between 6mm and 12mm
  • Very lightweight
  • With or without pre-tension
  • Maintenance-free dry operation
Visit the online shop

drylin® N carriage options

Solid plastic guide carriages

drylin® N low-profile linear carriage of solid plastic
  • Installation sizes 17 and 27
  • Load capacity, stat.: 50 N
  • With threaded pin or with through hole
  • Installation size 27 also as prism carriages
Visit the online shop

Overmoulded guide carriages

Overmoulded guide carriages
  • Installation sizes: 27 and 40
  • Load capacity, stat.: 500 to 1,000 N
  • With threaded pin or with through hole
  • Very lightweight
Visit the online shop

Clip together guide carriage

Configure drylin® N low-profile linear guide
  • Installation sizes: 27, 40 and 80
  • Load capacity, stat.: 500 to 1000 N
  • With threaded pin or with through hole
  • Installation size 80 with threaded hole
Visit the online shop

Construction of drylin N low-profile linear guide

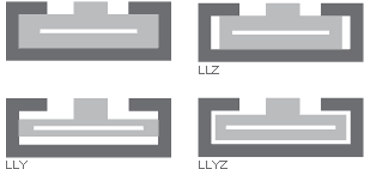

Floating bearing for low-profile linear rails

Due to their geometry, floating bearings compensate misalignments and parallelism errors. Thereby, specific design tips must be observed.
drylin N - design tips
drylin® N design rules

Configure a complete system

banner

You can use the drylin® linear guides expert to quickly and easily configure an individual linear guide for your application in just five steps.

Configure online now!

Frequently asked questions about guide carriages

What is a low profile carriage?

A drylin® N low profile carriage is a carriage that runs in the drylin® N low profile linear rail.

Where can a low profile carriage be used?

The carriages can be used with any drylin® N rail and are ideally suited to applications with limited installation space.

Why chose drylin® N carriages?

The drylin® N carriages are low cost, lubrication free and are available in a range of installation sizes.

Find more FAQs here
