Series Z200.2

Here you can configure your e-chain system® individually. All entries and changes are taking over to the part list which is situated at the end of the page.

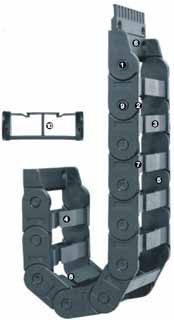

Series Z200.2 - chain, to be filled along the inner radius

1. Large pins - long service life
2. Torsional motion possible
3. Version "E", filled along the outer radius
4. Version "Z", filled along the inner radius
5. Cable-friendly interior
6. Mounting element with integrated strain relief possible
7. Dirt-repellent outer contour
8. Very easy to fill - Cable is just pushed in
9. Patented "push button principle" holds links together
10. Available with 1 or 2-chamber design (permanently injection-moulded multiple chamber design for cable separation
Series Z200

Available Inner widths:2x37,2x50 mm
Available bend radii R: 55 to 200 mm
Pitch: 46 mm/link = 22 links/m

Series Z200.2 is suitable for the following types of applications:

Vertical: Hanging applications, standing applications
Horizontal: Unsupported applications ≤ 1.75 m
Circular movement: Rotating application possible, if necessary with reworking (from 180° rotation angle mechanical reworking is always necessary)

When to use Series Z200.2

When easy filling without opening and closing of lids is required
Cost-effective
If quiet running is required

When not to use Series Z200.2

For applications with particularly high fill weights and large unsupported lengths
Series 2400
If secure closing of the crossbars is required
Series 2400

Installation dimensions


Part No. :
Inner width Bi [mm]:
Bi1 [mm]:
Bi2 [mm]:
Bending radius R [mm]:
Travel distance S [mm]:
Fixed end dM [mm]:
Chain length^** [mm]:
Number of chain links :
External width Ba [mm]:
H^* [mm]:
D [mm]:
K [mm]:
Hi [mm]:
Ha [mm]:
Weight per link [g]:
Weight [kg/m]:
* The required clearance height is HF = H + 40 mm (at 2.5 kg/m fill weight), which should be observed in all types of applications. Please contact us if you have particularly confined space requirements.
** The calculated length corresponds to the chain length without mounting brackets.

Crossbars overlapping on the opening mechanism
A=moving end, B=fixed end
Pitch: 46mm
Links / m: 22
Travel: S
Chain length = S/2 + K

Unsupported length

The unsupported length depends on fill weight
X axis: unsupported length in m FLB/FLG
Y axis: fill weight in kg/m
Lower scale: travel S in m
FLB = unsupported with permissible sag
FLG = unsupported with straight upper run

Price index:

Opening mechanism :

Personal contact

Application examples 3D-CAD Samples and catalog order E-Chain® Expert call Service life calculation PDF file Ask the product expert

Designing with igus®

2 mounting bracket variants

2 options and 5 bend radii

Design specificationFurther information on "unsupported application"

Design specificationFurther information on "gliding application"

Assembly instructions

Other installation types

Technical specifications

Strain reliefs

Interior separation

Fixed interior separation

Product range

Please use Configurator for partitioning of interior and for filling with cables.

Call configurator

Mounting brackets

Plastic - pivoting

Plastic - locking

unassembled	assembled

Recommended for unsupported and gliding applications

For tight installation spaces

Strain relief with clip-mountable tiewrap plates

Variable angle for flexible assembly

Different e-chain® mounting options, through easy assembly of the pivoting mounting brackets to both the fixed and moving end


:
Part No. :
A [mm]:
Number of teeth :

Strain reliefs

unassembled	assembled

Recommended for hanging and standing applications

For extreme accelerations and high speeds

When vertical space is restricted to the dimension H_F

Different e-chain® mounting options, through easy assembly of the locking mounting brackets to both the fixed and moving end


:
Part No. :
A [mm]:
Number of teeth :

Strain reliefs

Part List

Personal contact

GToB Imprint General notes Data protection declaration

hanging (max.) [m]	10
standing (max.) [m]	1.5
max. side-mounted, unsupported [m]	0.5
circular	with reworking

Material of chain links	igumid NB
Min. permissible temperature [°C]	-40
Max. permissible temperature [°C]	80
Gliding speed (max.) [m/s]	3
Max. gliding speed [m/s²]	10
Speed FLG max. [m/s]	20
Speed FLG max. [m/s²]	200
Speed FLB max. [m/s]	3
Speed FLB max. [m/s²]	6
Flammability class of chain link	VDE 0304 IIC UL94 V2
